Controller and Accessories for NA GMV5
Wired Controller

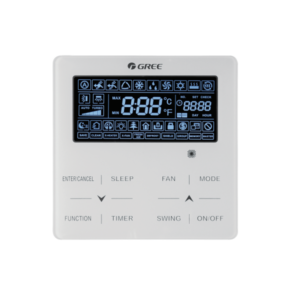

Wired Controller, Model: XK46
Description: Standard controller for ducted IDU, optional for non-ducted IDU

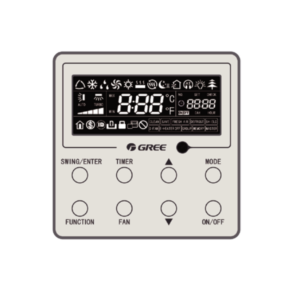

Wired Controller, Model: XK79
Description: Optional wired controller for hotel with key card control
Wired Controller, Model: XK55
Description: Optional wired controller with 7-day programmable function, Max.Indoor unit connectable is 16, color screen

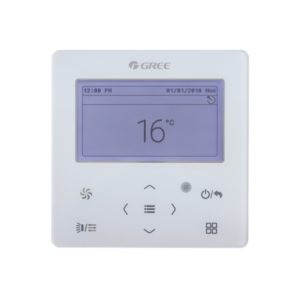

Wired Controller, Model: XE70-33/H
Description: Optional wired controller with 7-day programmable function, can set max. 4 weekly programme simultaneously, size 112*112mm, max. qty of connectable indoor unit is 16

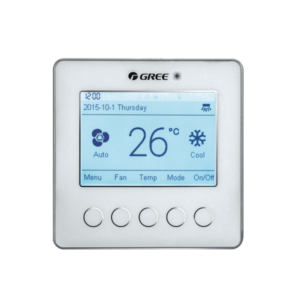

Wired Controller, Model: XE76-33/H
Description: Optional wired controller with 7-day programmable function, can set max. 3 weekly programme simultaneously, size 86*86mm, max. qty of connectable indoor unit is 16

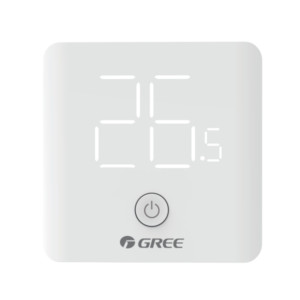

Receiver For Remote Controller, Model: JS13
Description: It is a necessary if you use wireless remote controller for ducted type IDU and fresh air processing IDU.
Wireless Controller

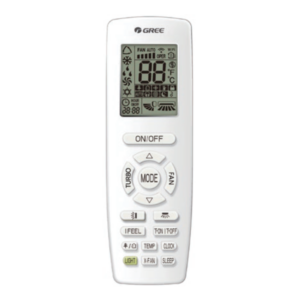

Wireless Contrller, Model: YAP1F
Description: Standard controller for non-ducted IDU, optional for ducted IDU
Centralized Controller

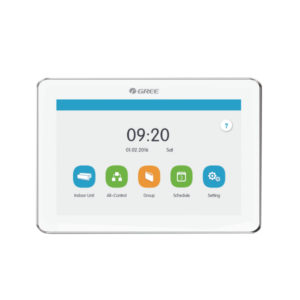

Centralized Controller, Model: CE52-24/F(C)
Description: Max. qty of connectable indoor unit is 255

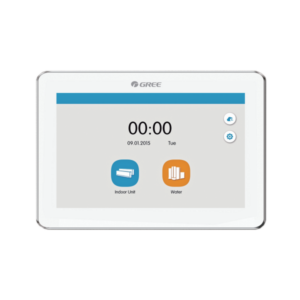

Smart Zone Controller, Model: CE53-24/F(C)
Description: Max. qty of connectable indoor unit is 32

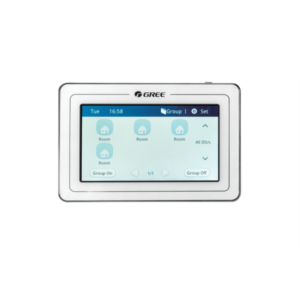

E-smart Zone Controller, Model: CE54-24/F(C)
Description: Max. qty of connectable indoor unit is 32

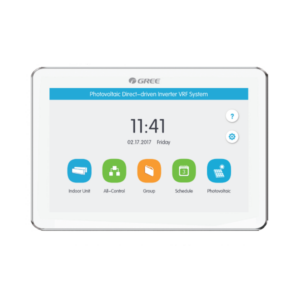

Solar VRF Centralized Controller, Model: CE55-24/F(C)
Description: Centralized Controller for solar VRF II Generation . 7inch touch screen, 1280*800 pixels, connect to D1/D2 or G1/G2, Max 16 systems, Max. qty of connectable indoor unit is 128, could monitor power generation from solar panels and power consumption from city grid.
Commisioning
Commisioning Software Kit, Model: DE40-33/A(C)
Description: Commisioning Software Kit: Software in CD

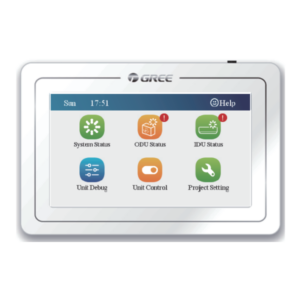

Portable Commissioning Tool Pro, Model: CE42-24/F(C)
Description: Portable Commissioning Tool Pro: 1.Compatible with CAN and RS485 2.Built-in 4G storage space 3.Support odu program update, idu program update, drive program update.
Intelligent Remote Eudement

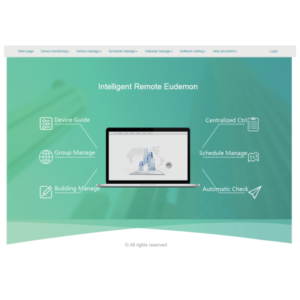

Intelligent Remote Software, Model: FE30-24/DF(B)
Description: Combine Long Distance Monitoring and Intelligent Billing Function: Software

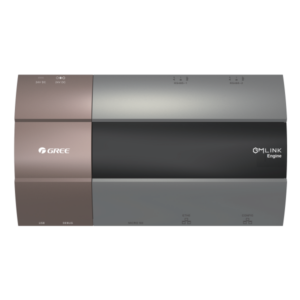

Intelligent Remote Gateway, Model: ME20-24/D1(T)
Description: Combine Long Distance Monitoring and Intelligent Billing Function: Gateway
Gateway of Building Protocol (BMS)
The Gateway of Modbus and BACnet, Model: ME30-24/D1(BM)
Description: Gateway for Modbus & BACnet. Can connect with BMS system with Modbus or BACnet communication procotol

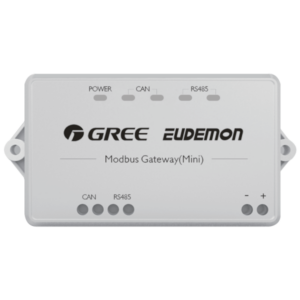

The Gateway of Modbus Mini, Model: ME30-24/E6(M)
Description: Gateway of Modbus Mini. Can connect with BMS system with Modbus communication procotol
Dry Contact & 24V Adaptor

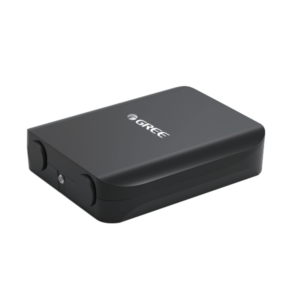

Dry Contact & 24V Adaptor, Model: ME32-33/H
Description:
- Convert 24v signal into GMV5 indoor unit ‘s HBS signal, so that GMV5 can be connected to the third party 24v thermostat (such as Nest)
- It can be connected to fire alarm signal or other dry contact detection signal, and the device is set to 24v adaption mode or dry contact mode
Wifi Module

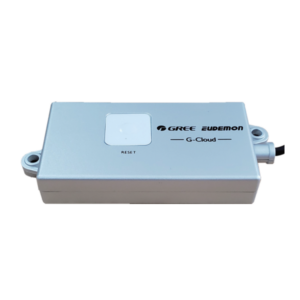

Wifi Module, G-Cloud (NEW), Model: ME31-00/C7
Description: Wifi Module (New) 1—11 Signal Channel
Max. qty of connectable indoor unit is 32.
