18 SEER Silenight Series Mini-Split System
————————————————

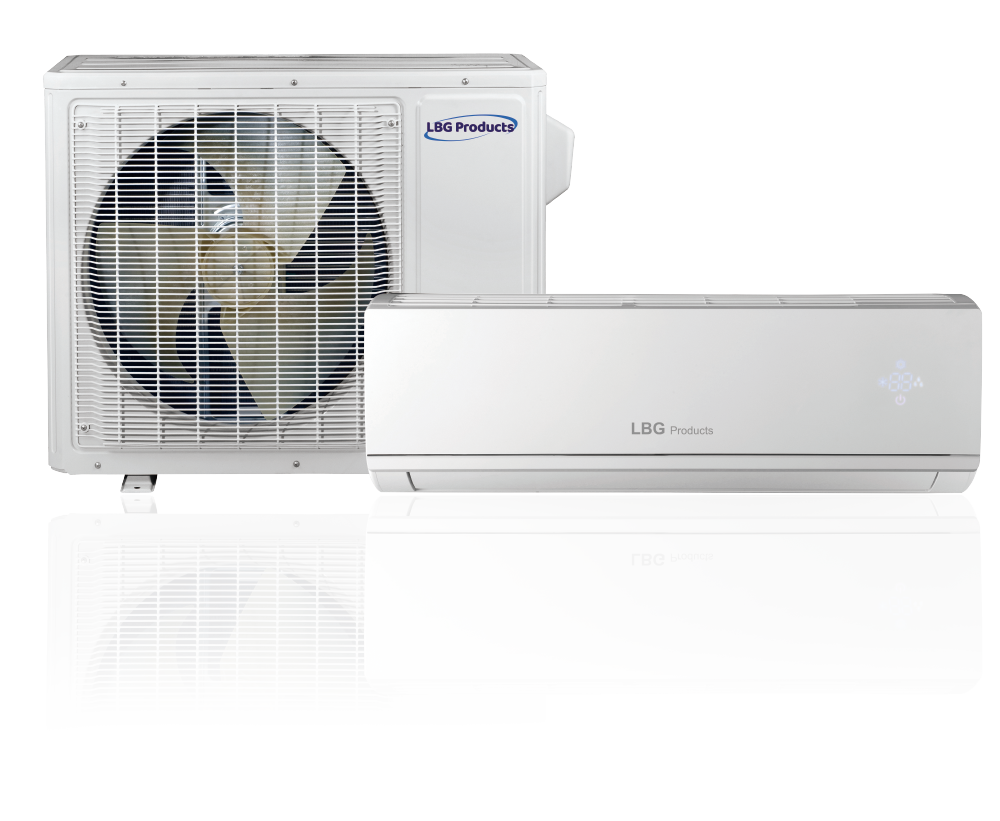

Silenight Mini-split
LBG Products Silenight series mini-split air conditioner, energy saving 18 SEER high efficiency and whishper quiet operation.
Features:
- Fast Cool and Heating. The compressor operates in high frequency to quickly cool down or heat up the room.
- Long Air Supply Range. With unequal-distance air duct design and simulation optimization for long-distance air supply.
- Soft Startup. Off-peak power supply to migrate the pressure of public power grid.
- Fireproof Electric Box. Higher safety performance.
Specifications
18seer
| Specifications | Unit | Parameter | |||
| ODU Model | - | LBH09ASO | LBH12ASO | LBH09DSO | LBH12DSO |
| IDU Model | - | LBH09ASI | LBH12ASI | LBH09DSI | LBH12DSI |
| System Ratings | |||||
| Cooling Capacity | Btu/h | 9,000 | 12,000 | 9,000 | 12,000 |
| Heating Capacity (47°F) | Btu/h | 9,500 | 13,000 | 9,500 | 13,000 |
| Heating Capacity (17°F) | Btu/h | 5,400 | 7,500 | 5,800 | 7,500 |
| Cooling Capacity Range | Btu/h | 2,763-9,724 | 3,753-12,500 | 3,100-9,600 | 3,753-12,500 |
| Heating Capacity Range | Btu/h | 2,081-12,283 | 3,412-15,013 | 3,100-12,000 | 3,924-14,000 |
| Cooling Power Input (Max) | W | 1,100 | 1,300 | 1,300 | 1,350 |
| Heating Power Input (Max) | W | 1,250 | 1,350 | 1,350 | 1,500 |
| SEER | - | 18 | 18 | 18 | 18 |
| HSPF | - | 9 | 9 | 9 | 9 |
| EER | (Btu/h)/W | 10 | 10.05 | 10.6 | 10.4 |
| COP | W/W | 3.2 | 3.05 | 3.28 | 3.05 |
| Cooling Operation Range | ℉(℃) | 0~115.0(-18.0~46.0) | 0~115.0(-18.0~46.0) | 0~115.0(-18.0~46.0) | 0~115.0(-18.0~46.0) |
| Heating Operation Range | ℉(℃) | -4.0~75.0(-20.0~24.0) | -4.0~75.0(-20.0~24.0) | -13.0~75.0(-25.0~24.0) | -13.0~75.0(-25.0~24.0) |
| Gas Pipe Size (OD) | Inch | 3/8 | 3/8 | 3/8 | 3/8 |
| Liquid Pipe Size (OD) | Inch | 1/4 | 1/4 | 1/4 | 1/4 |
| Connection Method | - | Flared | Flared | Flared | Flared |
| Factory Charge | oz | 24.7 | 31.8 | 24.7 | 31.8 |
| Additional Charge | oz/ft. | 0.2 | 0.2 | 0.2 | 0.2 |
| Pre-Charge Length | ft. | 24.6 | 24.6 | 25 | 25 |
| MAX Refrigerant Length | ft. | 65.6 | 98.4 | 100 | 100 |
| Min Refrigerant Pipe Length | ft. | 10 | 10 | 10 | 10 |
| MAX Refrigerant Pipe Elevation | ft. | 32.8 | 49.2 | 65 | 65 |
| Indoor Unit Data | |||||
| Fan Motor Power Output | W | 20 | 20 | 20 | 20 |
| Fan Motor RLA | A | 0.24 | 0.25 | 0.22 | 0.31 |
| Air Flow Volume | CFM | 171-318 | 194-400 | 171-318 | 194-400 |
| Sound Pressure Level | dB(A) | 28-43 | 29-43 | 28-43 | 29-43 |
| Dehumidication | pt/hr | 1.69 | 2.96 | 1.69 | 2.96 |
| Power Supply | - | 115V / 1Ph / 60Hz | 115V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz |
| Min/Max Voltage | V | 103-127 | 103-127 | 187-253 | 187-253 |
| MCA | A | 17 | 20 | 9 | 9 |
| MOCP/Breaker Size | A | 25 | 30 | 15 | 15 |
| Outdoor Unit Data | |||||
| Compressor Type | - | DC Inverter Rotary | DC Inverter Rotary | DC Inverter Rotary | DC Inverter Rotary |
| Compressor RLA | A | 12.62 | 15.23 | 6.6 | 6.6 |
| Refrigerant Type | - | R410A | R410A | R410A | R410A |
| Fan Motor Power Output | W | 30 | 30 | 30 | 30 |
| Fan Motor RLA | A | 0.24 | 0.23 | 0.36 | 0.37 |
| Sound Pressure Level | dB(A) | 52 | 53 | 52 | 53 |
| Power Supply | - | 115V / 1Ph / 60Hz | 115V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz |
| Min/Max Voltage | V | 103-127 | 103-127 | 187-253 | 187-253 |
| Main Supply Wire Size | - | 12-2 AWG | 12-2 AWG | 16-2 AWG | 16-2 AWG |
| MCA | A | 17 | 20 | 9 | 9 |
| MOCP/Breaker Size | A | 25 | 30 | 15 | 15 |
| Specifications | Unit | Parameter | |||
| ODU Model | - | LBH18DSO | LBH24DSO | LBH30DSO | LBH36DSO |
| IDU Model | - | LBH18DSI | LBH24DSI | LBG30DSI | LBH36DSI |
| System Ratings | |||||
| Cooling Capacity | Btu/h | 18,000 | 22,000 | 30,000 | 33,600 |
| Heating Capacity (47°F) | Btu/h | 19,800 | 24,000 | 30,000 | 34,600 |
| Heating Capacity (17°F) | Btu/h | 11,300 | 16,000 | 16,000 | 22,600 |
| Cooling Capacity Range | Btu/h | 3,412-20,472 | 8,600-24,000 | 4,100-33,100 | 5,951-36,000 |
| Heating Capacity Range | Btu/h | 3,412-21,837 | 8,600-26,000 | 7,848-36,000 | 8,530-37,020 |
| Cooling Power Input (Max) | W | 2,350 | 2,700 | 3,400 | 3,900 |
| Heating Power Input (Max) | W | 2,350 | 2,750 | 3,800 | 4,200 |
| SEER | - | 18 | 18 | 18 | 18 |
| HSPF | - | 9 | 10 | 9 | 9 |
| EER | W/W | 9.89 | 10.95 | 10.55 | 9.21 |
| COP | W/W | 2.78 | 3.30 | 3.30 | 2.8 |
| Cooling Operation Range | ℉(℃) | 0~115.0(-18.0~46.0) | 0~115.0(-18.0~46.0) | -4~115(-20~46) | -4~115(-20~46) |
| Heating Operation Range | ℉(℃) | -13.0~75.0(-25.0~24.0) | -13.0~75.0(-25.0~24.0) | -13~75(-25~24) | -13~75(-25~24.0) |
| Gas Pipe Size (OD) | Inch | 1/2 | 5/8 | 5/8 | 5/8 |
| Liquid Pipe Size (OD) | Inch | 1/4 | 1/4 | 1/4 | 1/4 |
| Connection Method | - | Flared | Flared | Flared | Flared |
| Factory Charge | oz | 45.86 | 56.4 | 77.6 | 88.2 |
| Additional Charge | oz/ft. | 0.2 | 0.54 | 0.5 | 0.5 |
| Pre-Charge Length | ft. | 25 | 25 | 24.6 | 24.6 |
| MAX Refrigerant Length | ft. | 100 | 100 | 82 | 82 |
| Min Refrigerant Pipe Length | ft. | 10 | 10 | 10 | 10 |
| MAX Refrigerant Pipe Elevation | ft. | 65 | 65.6 | 32.8 | 32.8 |
| Indoor Unit Data | |||||
| Fan Motor Power Output | W | 35 | 35 | 70 | 70 |
| Fan Motor RLA | A | 0.37 | 0.32 | 0.55 | 0.55 |
| Air Flow Volume | CFM | 294-500 | 441-706 | 441-824 | 441-824 |
| Sound Pressure Level | dB(A) | 35-47 | 36-49 | 37-55 | 37-55 |
| Dehumidication | pt/hr | 3.80 | 4.23 | 6.34 | 7.4 |
| Power Supply | - | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz |
| Min/Max Voltage | V | 187-253 | 187-253 | 187-253 | 187-253 |
| MCA | A | 16 | 16 | 24 | 24 |
| MOCP/Breaker Size | A | 25 | 25 | 35 | 35 |
| Outdoor Unit Data | |||||
| Compressor Type | - | DC Inverter Rotary | DC Inverter Rotary | DC Inverter Rotary | DC Inverter Rotary |
| Compressor RLA | A | 12.08 | 12.18 | 16.9 | 16.9 |
| Refrigerant Type | - | R410A | R410A | R410A | R410A |
| Fan Motor Power Output | W | 60 | 60 | 92 | 92 |
| Fan Motor RLA | A | 0.52 | 0.40 | 0.7 | 0.7 |
| Sound Pressure Level | dB(A) | 53 | 58 | 60 | 61 |
| Power Supply | - | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz | 208/230V / 1Ph / 60Hz |
| Min/Max Voltage | V | 187-253 | 187-253 | 187-253 | 187-253 |
| Main Supply Wire Size | - | 14-2 AWG | 14-2 AWG | 12-2 AWG | 8-2 AWG |
| MCA | A | 16 | 16 | 24 | 24 |
| MOCP/Breaker Size | A | 25 | 25 | 35 | 35 |
